Belt tensioner improves transmission transmission, long service life.
High quality galvanized frame, siemens motor 1.1 kw, 3 phase energy saving motor, 6 blades, certified 3 C, safe and reliable.
Using advanced front double door opening device, small wind resistance, cone in elongated design aims to increase air exit power.
Galvanized sheet weight zinc coating is 275 g / m, more effective at avoiding rust, so it is more durable.
Function:

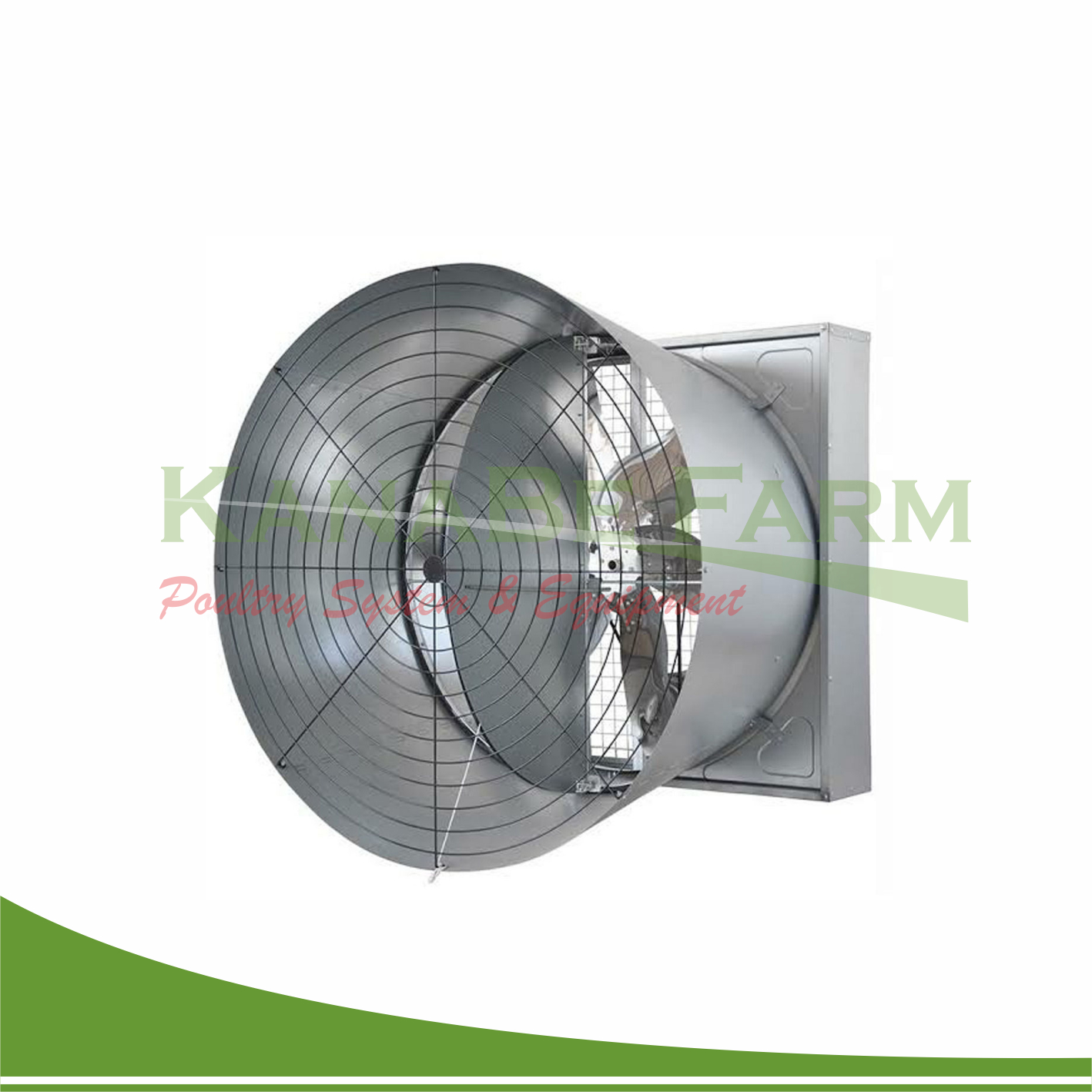

A fan with a funnel which is equipped with a mechanical system that opens / closes automatically.
Open and closed with a wind permit.
Specification:
Diameter of Blade : 1270 mm
Rated Voltage : 380 V
Rated Current : 2.0 A
Rated Power : 0.75 Kw
Motor Speed : 1400 r/min
Air Flow : 42515 m3 / h
Noise : < 65 dB
Installation Dimension : 1420 x 1420 mm
